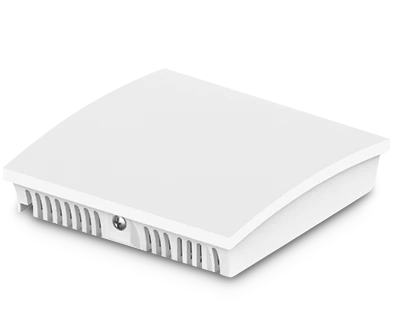

MCO Home MCO CO2 Monitor

CO2 Monitor A2-CO2-B & A2-CO2 is a Z-Wave based air quality detector mainly used to monitor CO2 concentration, temperature and humidity in indoor environment. Device can be added into any Z-Wave network, and is compatible with any other Z-Wave certified devices.

Specification

Power Supply:1xER14505(3.6V 2700mAH) for A2-CO2-B,

                       12VDC for A2-CO2

Battery Life: more than 3 years based on 15 minutes reporting for A2-CO2-B

CO2 Display Range: 400-5000ppm

Temperature Range：0 – 50°C

Humidity Range: 0 – 85%RH

Work Environment:0~50℃ 0-85%RH  (Non-condensation)

Housing: ABS+ PC

Dimension：89* 89*20.5mm

Hole Pitch：60mm

Z-Wave 800 series

Z-Wave Frequency: Operating frequency range, defined by the regulatory bodies

Installation: Wall-mounted (vertical)
